Products Details
Vent - Flush Mount, No Damper
Species:
Vent
Product ID:
FMND-2
Construction :
Solid
Color :
natural
Carton Quantity :
1.00 piece(s)
Price :
$51.00 EA
Manufacturer :
Da Vinci Floors
DescriptionSpeciesRoom Scenes

Flush Mount

Complete with its own frame assembly, this style sits flush with most hardwood floors.  Provides a seamless and refined appearance to a wood floor that looks truly custom.

  • Can be used with floor thicknesses: 3/8", 1/2", 5/8" and 3/4".
  • Installation with wood flooring is recommended.
  • Frame is permanently mounted to floor, while vent inset is removable for cleaning.
  • Frame has 45° mitered corners.



Flush Mount Sizing

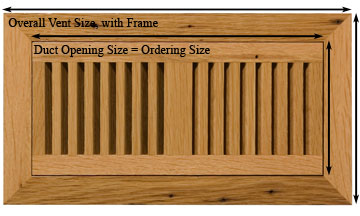

Also known as “inset vents with frame”, Flush Mount vents are ordered by specifying the duct opening measurements as listed in the first column below.


Order Size Overall Size
2 1/4” x 10” 3 11/16” x 11 7/16”
2 1/4” x 12” 3 11/16” x 13 7/16”
2 1/4” x 14” 3 11/16” x 15 7/16”
3” x 10” 4 7/16” x 11 7/16”
3” x 12” 4 7/16” x 13 7/16”
3” x 14” 4 7/16” x 15 7/16”
4” x 8” 5 7/16” x 9 7/16”
4” x 12” 5 7/16” x 13 7/16”
4” x 14” 5 7/16” x 15 7/16”
6” x 10” 7 7/16” x 11 7/16”
6” x 12” 7 7/16” x 13 7/16”
6” x 14” 7 7/16” x 15 7/16”
8” x 10” 9 1/4” x 11 7/16”
8” x 12” 9 1/4” x 13 7/16”
8” x 14” 9 1/4” x 15 1/4”



Vent Sizes
We recommend that the installer measures the duct opening in the floor carefully to ensure the dimensions are accurate.
